HURST  LAS/LBS   電機

收錄型號： 0條（帶參數型號： 0 條）

選型指南： 0 條 應用案例： 0 條

安裝調試： 0 條 安裝調試： 0 條

維護維修： 0 條 升級改造： 0 條

收藏

詳細介紹

Variable Speed Linear Actuator LAS, LBS Specifications:

Maximum Load:LAS 10 lbs., LBS 6.5 lbs.
Rotor  Assembly:Threaded to accept a std. 1/4"-16 ACME 2G right-hand screw (Class 2G RH)
Insulation Class: Class A (105?C)
Lead Wire:LAS/LBS 6 leads 24 AWG (approx. 8.5 inches [215.9 mm])
Operation Ambient Temp:-10?C to +40?C (approx.)
Motor Construction:Die cast end bells and ball bearing construction
Shaft Length:8 inches [203.2 mm] max with travel 5.25 inches [133.35 mm]
Applications:Pushing, Pulling, Lifting, and Positioning
Note:  Typical data subject to change without notification

Additional Information:

The LAS and LBS stepping motor/actuator offers an economical choice of controlled linear motion for pulling, pushing, or lifting. The rotor assembly contains a nut which accepts a standard 1/4" diameter, 16 TPI, RH Acme screw giving a Class 2G fit.

LAS and LBS series stepping motors have rotor step angles of 7.5? (LAS) or 15? (LBS) with linear resolutions of 768 or 384 steps per inch, respectively. They may be driven with the Hurst controllers as shown in the table below.

The motors are reversible and have die cast end bells and ball bearing construction.

Notes:

  • Standard winding is unipolar with 6 lead wires.

  • Bi-polar windings may be specified.

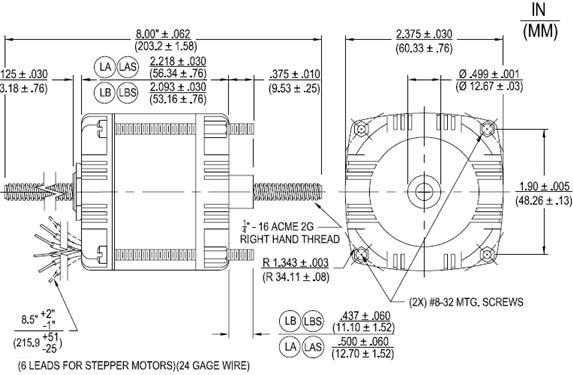

LAS, LBS Variable Speed Linear Actuator Drawings:
